cETL LED DOB Module Vendor
Our DOB light source and US driver meet JA8, Energy Star and other standards, cETL, cUL, FCC certification, support 0%-100% dimming. Adopt UL certified high thermal conductivity circuit board and international brand lamp beads, life span of 50,000 hours, warranty of 5 years. Cooperate with Shanghai Arcad, quality assurance.
![US-JA8-Title24-No-Frequency LED-Module-D60MM-1-16W](/wp-content/uploads/2024/08/US-JA8-Title24-No-Frequency-LED-Module-D60MM-1-16W-768x768.jpg)

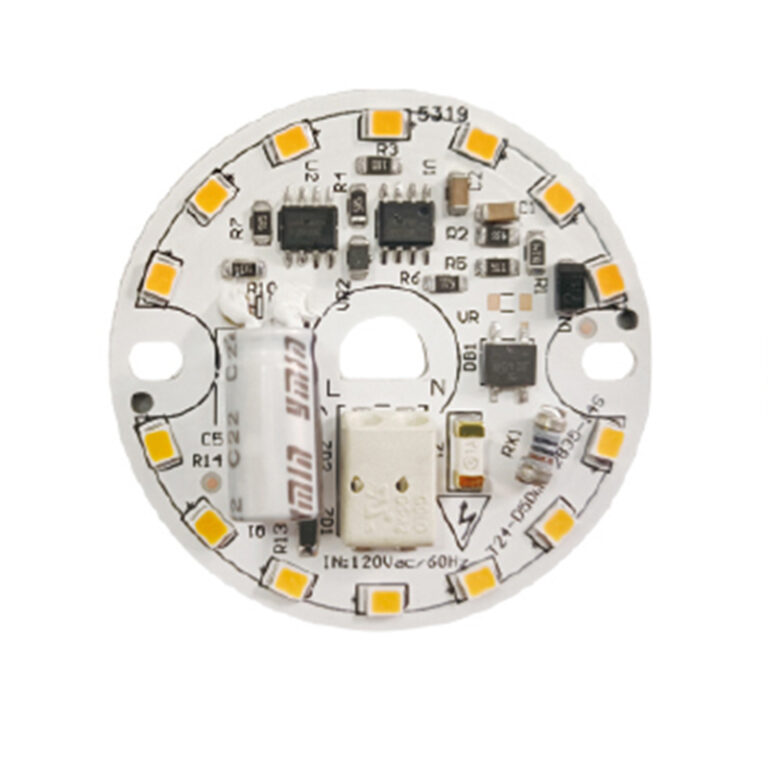

US-JA8-Title24-No-Frequency LED-Module-D60MM-1-16W
![California-JA8-Standard-DOB-Light-Module-D72MM-1-20W](/wp-content/uploads/2024/08/California-JA8-Standard-DOB-Light-Module-D72MM-1-20W-768x768.jpg)
California-JA8-Standard-DOB-Light-Module-D72MM-1-20W
![Pendant-Lamp-Light-Source-D118MM-1-22W](/wp-content/uploads/2024/08/Pendant-Lamp-Light-Source-D118MM-1-22W-768x768.jpg)
Pendant-Lamp-Light-Source-D118MM-1-22W
![1CCT-3CCT-5CCT-DOB-Light-Source-D122MM-1-20W](/wp-content/uploads/2024/08/1CCT-3CCT-5CCT-DOB-Light-Source-D122MM-1-20W-768x768.jpg)
1CCT-3CCT-5CCT-DOB-Light-Source-D122MM-1-20W
![California-JA8-Title-No-Flicker-LED-Module-Light-D240MM-1-29W](/wp-content/uploads/2024/08/California-JA8-Title-No-Flicker-LED-Module-Light-D240MM-1-29W-768x768.jpg)
California-JA8-Title-No-Flicker-LED-Module-Light-D240MM-1-29W
![Ceiling-Lamp-DOB-Light-D186MM-30-35W](/wp-content/uploads/2024/08/Ceiling-Lamp-DOB-Light-D186MM-30-35W-768x768.jpg)
Ceiling-Lamp-DOB-Light-D186MM-30-35W
![Ceiling-Lamp-Module-D240MM-1-48W](/wp-content/uploads/2024/08/Ceiling-Lamp-Module-D240MM-1-48W-1-768x768.jpg)
Ceiling-Lamp-Module-D240MM-1-48W
![Ceiling-Lamp-Fan-Lamp-Replace-Light-Source-D240MM-D320MM-1-45W-3CCT-5CCT](/wp-content/uploads/2024/08/Ceiling-Lamp-Fan-Lamp-Replace-Light-Source-D240MM-D320MM-1-45W-3CCT-5CCT-768x768.jpg)
Ceiling-Lamp-Fan-Lamp-Replace-Light-Source-D240MM-D320MM-1-45W-3CCT-5CCT
What is ETL DOB Light Source ?
DOB light source module (Driver-on-Board) is an LED lighting solution that integrates a driver and a light source. In traditional LED lighting systems, the LED light source and the driver circuit are usually separated, and the driver is responsible for converting AC power into DC power suitable for LEDs. The DOB light source module integrates these functions on a single circuit board, thus simplifying the design and installation process.
It is widely used in home, commercial, industrial and decorative lighting. Compared with traditional light sources, DOB modules are easier to install, have fewer failure points, and are more efficient, making them suitable for occasions where long-term stable operation is required.
![LED ceiling modoule ETL accreditation](/wp-content/uploads/2024/09/LED-ceiling-modoule-ETL-accreditation-150x150.jpg)
![LED ceiling modoule Tuv accreditation](/wp-content/uploads/2024/09/LED-ceiling-modoule-Tuv-accreditation-1-150x150.jpg)
![LED ceiling modoule FC accreditation](/wp-content/uploads/2024/09/LED-ceiling-modoule-FC-accreditation-1-150x150.jpg)
![LED ceiling modoule CE accreditation](/wp-content/uploads/2024/09/LED-ceiling-modoule-CE-accreditation-1-150x150.jpg)
![LED ceiling modoule CB accreditation](/wp-content/uploads/2024/09/LED-ceiling-modoule-CB-accreditation-1-150x150.jpg)
![Customized mirror front light source](/wp-content/uploads/2024/08/Customized-mirror-front-light-source-03-1-768x768.jpg)
![Customized Wall Sconce Light Source01](/wp-content/uploads/2024/08/Customized-Wall-Sconce-Light-Source02.jpg)
![Customized Wall Sconce Light Source01](/wp-content/uploads/2024/08/Customized-Wall-Sconce-Light-Source01.jpg)
![Customized mirror front light source](/wp-content/uploads/2024/08/Customized-mirror-front-light-source.jpg)
Replacement Light Source For Mirror Headlights:
Model:MJ-TL-Series
Power:10W,20W,24W,36W
Voltage:120V
Size:80*25mm,190*25mm,280*25mm,
400*25mm,560*25mm
PCB Thickness:1.3mm
Ra:>80
PF:0.9
CCT:2700-6500K
The product length, width, power and other parameters can be customized according to customer needs.
![ETL certified fan light source customization](/wp-content/uploads/2024/08/ETL-certified-fan-light-source-customization-00-768x768.jpg)
![ETL certified fan light source customization](/wp-content/uploads/2024/08/ETL-certified-fan-light-source-customization-04.jpg)
![ETL certified fan light source customization](/wp-content/uploads/2024/08/ETL-certified-fan-light-source-customization-03.jpg)
![ETL certified fan light source customization](/wp-content/uploads/2024/08/ETL-certified-fan-light-source-customization-01.jpg)
Replacement Light Source For Fan Light Customization
Model:MJ-TR0-Series
Power:1-40W
Voltage:120V
Size:Φ35mm,Φ47mm,Φ50mm,Φ60mm,Φ72mm,
Φ80mm,Φ94mm,Φ118mm,Φ122mm,Φ137mm,
Φ162mm,Φ240mm
PCB Thickness:1.3mm-1.5mm
Ra:>80
PF:0.9
CCT:2700-6500K
The product length, width, power and other parameters can be customized according to customer needs.
![Customized light source for ETL certified ceiling lamps 00](/wp-content/uploads/2024/08/Customized-light-source-for-ETL-certified-ceiling-lamps-00-1-768x768.jpg)
![Customized light source for ETL certified ceiling lamps](/wp-content/uploads/2024/08/Customized-light-source-for-ETL-certified-ceiling-lamps-03.jpg)
![Customized light source for ETL certified ceiling lamps](/wp-content/uploads/2024/08/Customized-light-source-for-ETL-certified-ceiling-lamps-02.jpg)
![Customized light source for ETL certified ceiling lamps](/wp-content/uploads/2024/08/Customized-light-source-for-ETL-certified-ceiling-lamps-01.jpg)
Replacement Light Source For Fan Light Customization
Model:MJ-TR1-Series,MJ-TR2-Series,MJ-TR3-Series
Power:1-45W
Voltage:120V
Size:Φ1100mm,Φ120mm,Φ130mm,Φ160mm,
Φ170mm,Φ186mm,Φ240mm,Φ320mm
PCB Thickness:1.3mm-1.5mm
Ra:>80 Or Ra:>90
PF:0.9
CCT:2700-6500K
The product length, width, power and other parameters can be customized according to customer needs.
DOB Technical Parameter Details
![](/wp-content/uploads/2024/06/2024-DOB-LED-Module-Light-Catalogue_011-768x1046.jpg)
![](/wp-content/uploads/2024/06/2024-PCB-LED-Light-Catalogue_2_001-768x1047.jpg)
![](/wp-content/uploads/2024/06/2024-LED-Light-Source-Catalogue_3_001-768x1052.jpg)
![Meiji lighting Product exhibition boxOK](/wp-content/uploads/2024/09/Meiji-lighting-Product-exhibition-boxOK.webp)
We’re more than just a supplier; we’re your partner in growth. Contact us today and let’s work together to double the profits for your next project.
